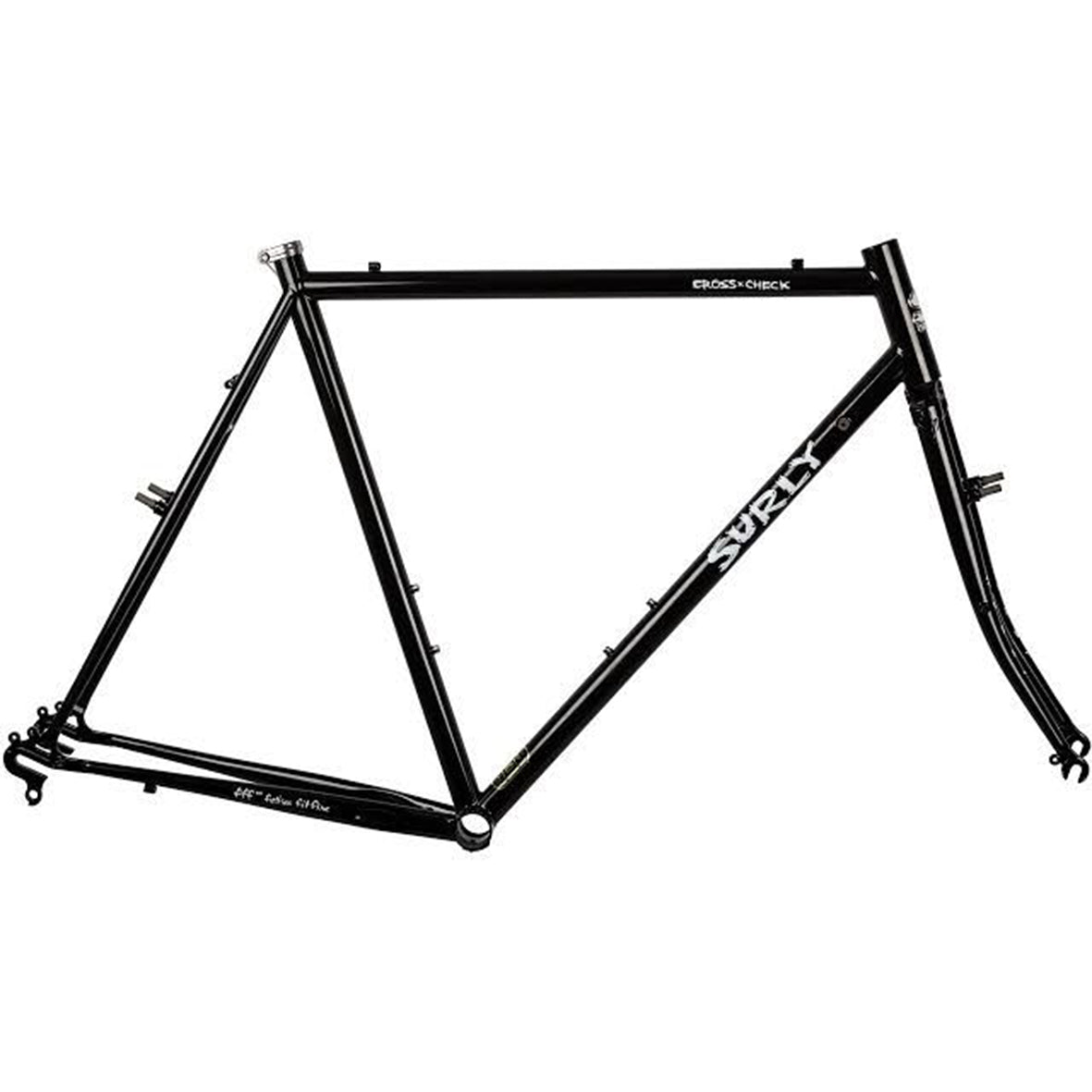

SURLY CROSS-CHECK FRAMESET - BLACK

Surly describes the Cross-Check as a tough-as-nails, super versatile road bike that performs astonishingly well on surface.

The frameset features semi-horizontal dropouts for singlespeed compatibility and wheelbase adjustability. The Gnot-Rite dropout spacing allows installation of 130 and 135mm hubs. It also has accommodations for front and rear racks and fenders, with a clearance for 700c x 42mm tires with or without fenders.

Specifications:

• Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
• Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
• Rear Dropout Configuration: Semi-horizontal
• Rear Hub Spacing:
• "Gnot-rite" 132.5mm
• 10 x 130mm or 10 x 135mm
• Front Hub Spacing: 10 x 100mm
• Rear Brake: Rim - Canti
• Front Brake: Rim - Canti
• Head Tube: Ø34mm
• Steerer Tube: Ø28.6mm (1-1/8")
• Crown Race: Ø30mm (1-1/8")
• Stock Headset Upper (S.H.I.S.): EC34/28.6
• Stock Headset Lower (S.H.I.S.): EC34/30
• Seat Collar: Ø30mm
• Seatpost: Ø27.2mm
• Front Derailleur (Clamp): Bottom-pull (Ø28.6mm)
• Max Chainring (CL)[3]

• 1x (Road): 50T
• 2x (Road): 39/53T
• Bottom Bracket: 68mm threaded (1.37" x 24TPI)
• Tire Clearance Frame: 700c x 42mm with or without fenders
• Tire Clearance Fork: 29 x 2.0" with or without fenders
• Rigid Fork Spec: 400 x 44mm
• Max Suspension Fork Length: N/A
• Bottle Mounts Frame: 2 Standard
• Bottle Mounts Fork: N/A
• Rack Mounts Frame: Yes (upper and lower threaded)
• Rack Mounts Fork: Yes (upper and mid-blade threaded)
• Fender Mounts Frame: Yes
• Fender Mounts Fork: Yes
• Other Features:
• Downtube mounted shifter bosses

Please note only Frame and Fork is included.

Photo Credit: Surly
